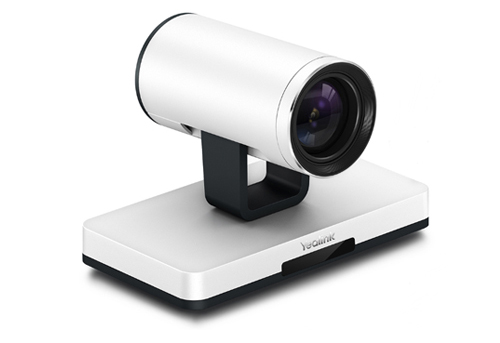

VCC20
VC Full HD PTZ Camera
If you are seeking a superb pan/tilt/zoom (PTZ)video conferencing camera for medium-sizemeeting rooms, the Yealink VCC20 is an ideal choice. 2.18M pixels HD CMOS sensor plus 12X optical zoompower the VCC20 HD PTZ, delivering HDimages up to 1080p@30 fps. The Yealink VCC20 camera is an optimal solution for a smaller environment. Itis so detailed and true to life that youfeel like you are in the meeting room with everyone else.
Features
Specifications
| Camera Type | 1/2.8” HD CMOS |
| Maximum Resolution | 1920 x 1080 |
| Video Output Pixels | 1080p/30, 1080p/25,720p/30,720p/25 |
| Maximum FPS | 30 fps |
| Lens Focal Length | f=3.92mm to 47.32mm |
| Lens Aperture (F#) | F/1.84 ~ F/2.81 |
| Zoom | 12x optical |
| Horizontal Field of View | 70.0° |
| Vertical Field of View | 48° |
| Min. Illumination | 0.5lux (in daylight), 0.1 lux (at night) |
| Signal Noise Ratio (SNR) | >55dB |
| Focus | Auto/Manual |
| Exposure | Auto/Manual |
| White Balance (WB) | ATW/Auto/Manual |
| Pan Range | ±100° |
| Tilt Range | ±30° |
| Shutter Speed | 1/30~ 1/10000 seconds |
| Beauty Shot | √ |
| Video System Compatibility | YealinkVC120/VC400 |
| Room Size | Medium |
| Dimensions (W*H*D) | 235mm*172 mm*169 mm |
| Operating Humidity | 20%- 85% |
| Operating Temperature | 0°C~ 40° |
