ZVC830 Meeting Kit


Yealink ZVC830 Zoom Rooms Kit

For large and extra-large rooms

ZVC830 with 3 mics for large rooms | ZVC830 with 4 mics for extra-large rooms

Click here to Downlaod Datasheet
Key features:

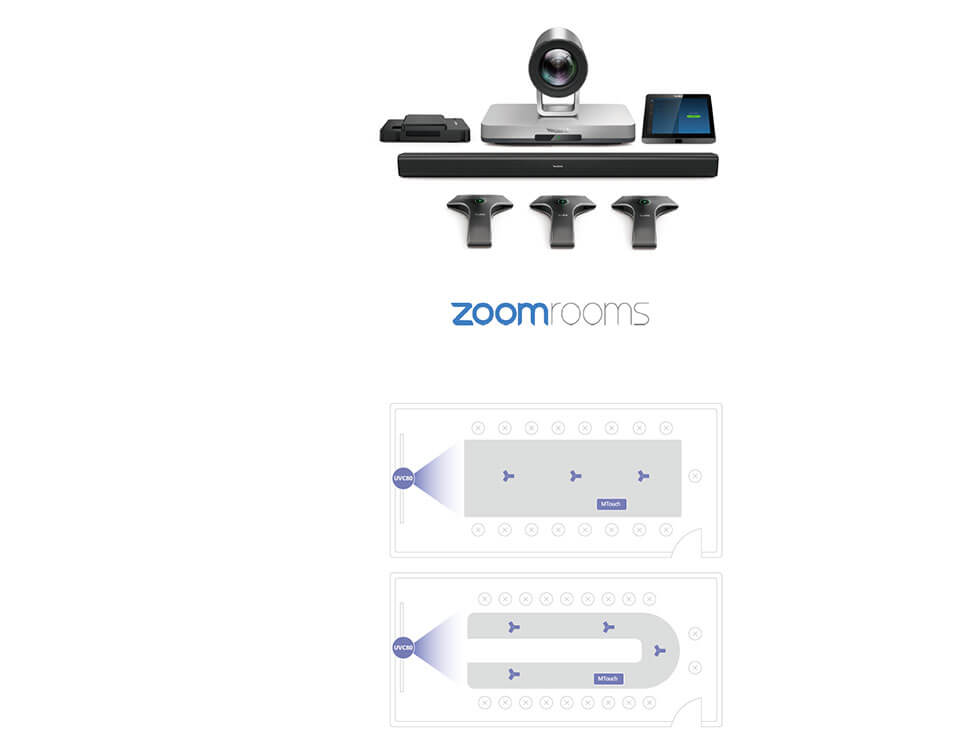

The Yealink ZVC830 Rooms Kit is designed for large and extra-large rooms. It is a complete Zoom Rooms package containing a full hardware suite (mini-PC, touch console, camera, audio devices) as well as the requisite software and license.

Yealink VCM34 Array Microphone has 20ft (6-meter) voice pickup range, featuring Yealink Noise Proof technology, everyone’s voice in the room is heard clearly.

The Yealink UVC80 features a 12x optical PTZ camera for sharp, smooth and stable video with a deep focus field. The wide-angle horizontal field-of-view lens and adjustable camera angle provide a broad view of board and training rooms.

What's included:
  • Mini-PC and cable management box
  • Yealink MTouch console
  • Yealink UVC80 USB PTZ camera
  • Yealink MSpeaker soundbar
  • 3-4 Yealink VCM34 microphone


  • Yealink UVC80 USB PTZ Camera

    Key features:
  • 1080p/60fps video resolution
  • 12x optical zoom
  • Field of view (diagonal): 78.5°
  • Pan range: 200°
  • Tilt range: 60°

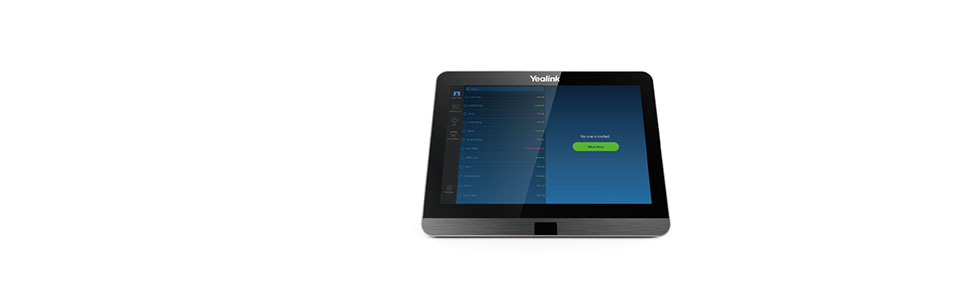

  • Yealink MTouch Console

    Key features:
  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • Human motion sensor
  • Angle adjustable bracket (23°-50°)

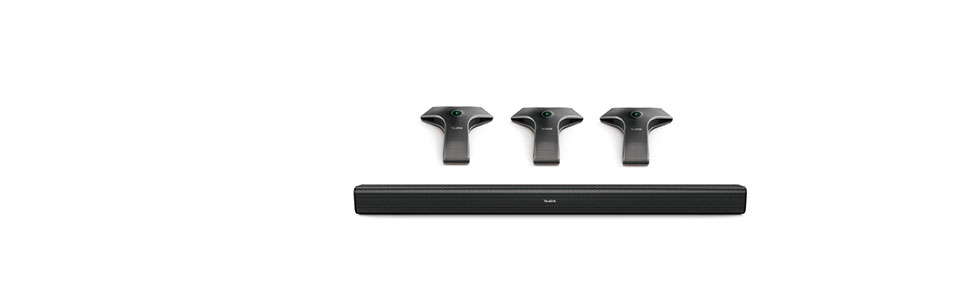

  • Yealink VCM34 Array Microphone + Mspeaker

    Key features: Yealink VCM34
  • Built-in 3-microphone array
  • 20ft(6-meter) voice pickup range
  • Cascade connection up to 4 units
  • Yealink Noise Proof Technology
  • Mute button with LED
  • Yealink MSpeaker
  • Output(THD=1.0%)RMS: 10W*4
  • Frequent response: 60Hz-20K Hz
  • S/N: ≥70dB
  • If you need assistance or have questions, please contact us via info@yealinkphone.com


    We recommend you to purchase the CP960-UVC bundle package and CP960-Zoom Edition.

    If the CP960 you have is of standard firmware version rather than a Zoom Edition, please download and upgrade to the Zoom Edition firmware, as well as apply and import the license.

    How to deploy?
